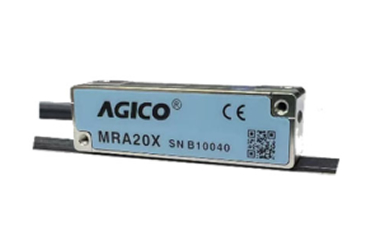

Magnetic Linear Encoder

MRA20 Series
  • Absolute output out signal
  • Axis lengths of up to 3.072 m
  • Resolution: Max. 22Bit
Resolution Supply Voltage Output Signal Reader/Scale distance Size(mm) MRA20
Max. 1um 5VDC Biss or SSI 0.1-0.4mm 26*22*10

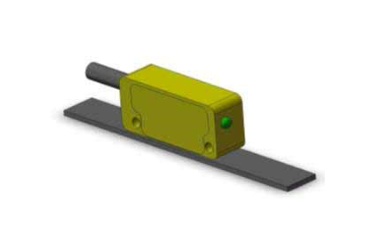

MRS Series
  • Output signal: Increments A,B
  • Work with linear motor
  • Stick-on reference mark options
  • High speed operation
Resolution Supply Voltage Output Circuit Reader/Scale distance Size(mm) MRS20
MRS50
Max. 0.5um 5VDC PP or LD 0.1-0.4mm 34*14.8*10

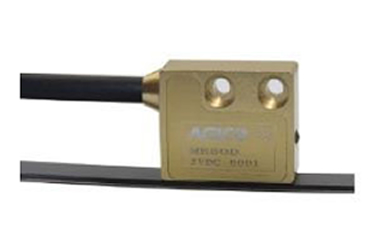

MR20 Series
  • Output signal: Increments A,B
  • Work with linear motor
  • Stick-on reference mark options
  • High speed operation
Resolution Supply Voltage Output Circuit Reader/Scale distance Size(mm) MR20
Max. 1um 5VDC PP or LD 0.1-0.4mm 26*22*10

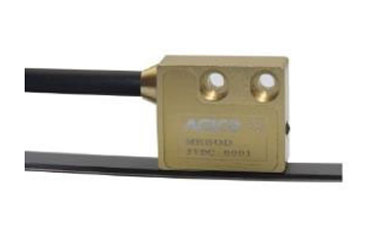

MR20P Series
  • Output signal: Increments A,B
  • One-button automatic calibration
  • Large installation spacing, high resolution
  • Can changed to dpi model for printer
Resolution Supply Voltage Output Circuit Reader/Scale distance Size(mm) MR20P
Max. 0.1um 5VDC PP or LD 0.1-0.4mm 26*22*10
MR50 Series
  • Output signal: Increments A,B
  • Stick-on reference mark options
  • Large installation spacing
  • High speed operation
Resolution Supply Voltage Output Circuit Reader/Scale distance Size(mm) MR50
Max. 2.5um 5VDC PP or LD 0.1-1.3mm 26*22*10
MR50B Series
  • Output signal: Increments A,B
  • High speed operation
  • Large installation spacing
  • Excellent dirt immunity
Resolution Supply Voltage Output Circuit Reader/Scale distance Size(mm) MR50B
Max. 2.5um 24VDC PP or LD 0.1-1.3mm 36*25*11
DR171L Series
  • Work with magnetic scale TR50
  • Low-power LCD
  • Large installation spacing: up to 2.5mm
  • Excellent dirt immunity
Resolution Supply Voltage Output Reader/Scale distance Size(mm) DR171L
Max. 25um 1.5V Battery Digital display 2.5mm 25*15*10
